par

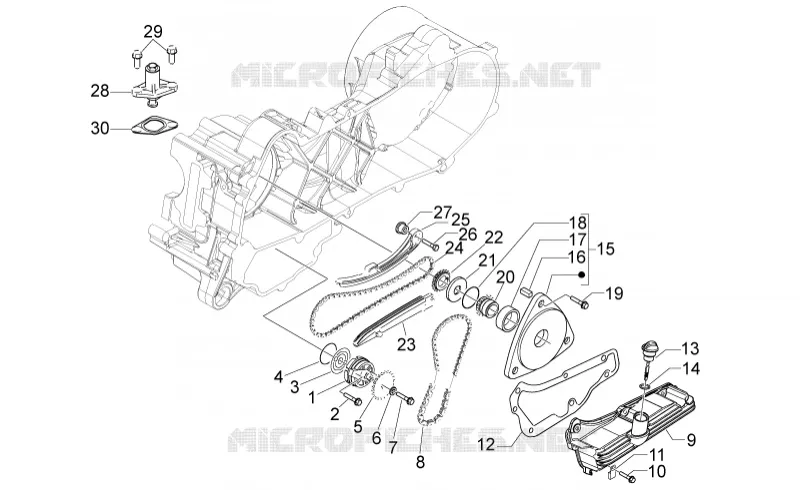

Pompe huile
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
1
Oil pump assy.
969319
Non disponible
2
Screw w/ flange
433477
3,25€ Prix unitaire TTC
3
Carter-oil pump gasket
436751
3,84€ Prix unitaire TTC
4
O-ring 12,42x1
434947
2,04€ Prix unitaire TTC
5
Oil pump gear
287913
11,74€ Prix unitaire TTC
6
Belleville spring Ø6,4xØ20x2
436695
4,09€ Prix unitaire TTC
7
Screw w/ flange M6x14
833722
Non disponible
8
Oil pump chain
434447
35,28€ Prix unitaire TTC
9
Motor oil cup
844871
119,81€ Prix unitaire TTC
10
Screw w/ flange M6x25
414837
Non disponible
11
Retainer clamp
487824
Non disponible
12
Sump gasket
969132
5,70€ Prix unitaire TTC
13
Oil level rod cpl.
844721
8,24€ Prix unitaire TTC
14
O-ring
479986
Non disponible
15
Cover
4783245
Non disponible
16
Oil pump chain drift
434345
10,14€ Prix unitaire TTC
17
Gasket ring
2879633
10,46€ Prix unitaire TTC
18
Gasket ring
844888
8,69€ Prix unitaire TTC
19
Screw w/ flange
484123
2,38€ Prix unitaire TTC
20
Oil pump control pinion
833495
123,47€ Prix unitaire TTC
21
Washer
430535
2,98€ Prix unitaire TTC
22
Timing system chain pinion cpl
969747
Non disponible
23
Sliding block
969877
9,78€ Prix unitaire TTC
24
Camshaft chain
96933R
68,32€ Prix unitaire TTC
25
Chain tensioner rod
828561
9,35€ Prix unitaire TTC
26
Hex screw M6x18
031089
3,53€ Prix unitaire TTC
27
Spacer
478247
Non disponible
28
Complete chain tensioner
82650R
30,00€ Prix unitaire TTC
29
Screw w/ flange M6x14
833722
Non disponible
30
Guarnizione cilindro/tendicatena
847928
5,63€ Prix unitaire TTC
Les schémas ne sont pas contractuels, en cas de doute, nos professionnels sont présents pour répondre à vos questions. Lors de l'ajout d'une pièce au panier, faites attention à commander la quantité souhaitée. Le prix unitaire indiqué est bien le prix pour chaque référence en quantité 1.
