par

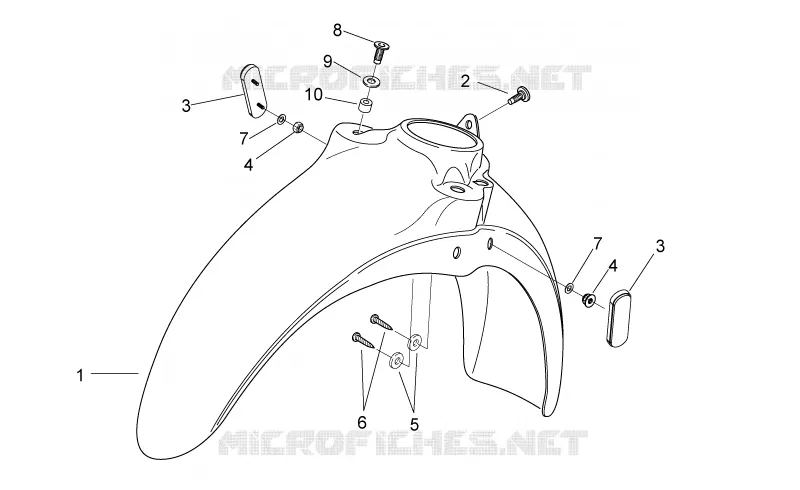

Carrosserie av. VI - Garde-boue AV
1
2
3
3
4
4
5
6
7
7
8
9
10
1
Front mudguard lilla
AP8226876
Non disponible
1
Front mudguard, cyan
AP8156283
Non disponible
1
Front mudguard, pink
AP8156270
Non disponible
1
Front mudguard, a.black
AP8226824
Non disponible
1
Front mudguard fuchsia
AP8226886
Non disponible
1
Front mudguard, orange
AP8226901
Non disponible
1
Front mudguard, white
AP8226903
Non disponible
1
Front mudguard, red
AP8226865
Non disponible
1
Front mudguard silver
AP8226889
Non disponible
1
Front mudguard orange
AP8226885
Non disponible
1
Front mudguard, yellow
AP8226900
Non disponible
1
Front mudguard, white
AP8226864
Non disponible
1
Front mudguard, cyan
AP8226902
Non disponible
1
Front mudguard green
AP8226887
Non disponible
1
Front mudguard blue
AP8226884
Non disponible
2
Screw w/ flange M5x12
AP8152302
Non disponible
3
Reflector, amber
AP8124719
20,65€ Prix unitaire TTC
4
Nut M4
AP8150204
3,74€ Prix unitaire TTC
5
Washer 5,3X10X1
AP8150177
2,00€ Prix unitaire TTC
6
Self-tapping screw
AP8150444
3,07€ Prix unitaire TTC
7
Washer 4,3X9X0,8
AP8150158
3,07€ Prix unitaire TTC
8
Screw w/ flange M5x16
AP8152298
5,33€ Prix unitaire TTC
9
Washer 15x5,5X1,2
AP8150382
3,74€ Prix unitaire TTC
10
Spacer
179574
3,06€ Prix unitaire TTC
Les schémas ne sont pas contractuels, en cas de doute, nos professionnels sont présents pour répondre à vos questions. Lors de l'ajout d'une pièce au panier, faites attention à commander la quantité souhaitée. Le prix unitaire indiqué est bien le prix pour chaque référence en quantité 1.
