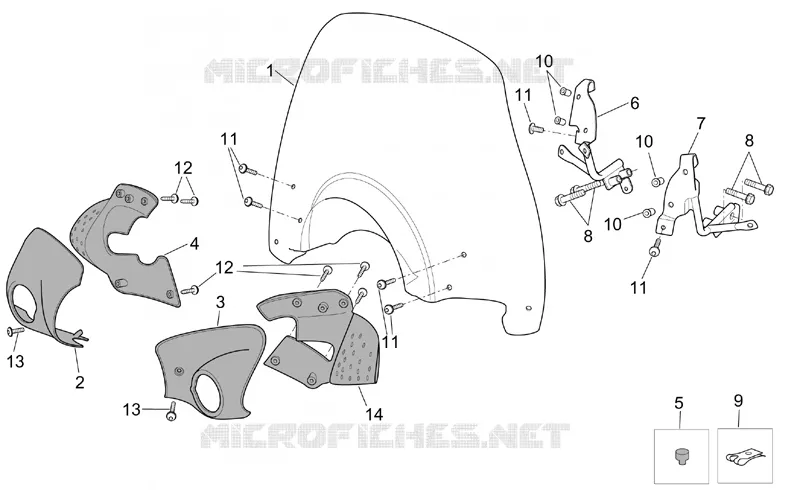

Carrosserie av. - Prot-main I
1
2
3
4
5
6
7
8
8
9
10
10
10
11
11
11
11
12
12
13
13
14
1
Windscreen
AP8168015
Non disponible
2
RH handguard
AP8158944
Non disponible
2
RH handguard, blue
AP8168833
Non disponible
2
RH handguard
AP8168103
Non disponible
2
RH handguard
AP8168199
Non disponible
2
RH handguard
AP8168209
Non disponible
2
RH handguard
AP8168757
Non disponible
3
LH handguard
AP8168758
Non disponible
3
LH handguard
AP8168200
Non disponible
3
LH handguard
AP8158945
Non disponible
3
LH handguard
AP8168104
Non disponible
3
LH handguard
AP8168210
Non disponible
3
LH handguard, blue
AP8168834
Non disponible
4
RH internal handguard
AP8158946
52,91€ Prix unitaire TTC
5
Rubber spacer
AP8144081
5,54€ Prix unitaire TTC
6
RH support bow
AP8146614
Non disponible
7
LH support bow
AP8146615
Non disponible
8
Screw w/ flange M8x30
AP8152288
4,09€ Prix unitaire TTC
9
Clip M5
AP8102375
4,09€ Prix unitaire TTC
10
Rubber w/ insert
AP8120531
9,12€ Prix unitaire TTC
11
Screw w/ flange M5x16
AP8152298
5,33€ Prix unitaire TTC
12
Self-tap screw 3,9x14
AP8150413
3,43€ Prix unitaire TTC
13
Hex socket screw M5x12
AP8152267
4,27€ Prix unitaire TTC
14
LH internal handguard
AP8158947
52,91€ Prix unitaire TTC
Les schémas ne sont pas contractuels, en cas de doute, nos professionnels sont présents pour répondre à vos questions. Lors de l'ajout d'une pièce au panier, faites attention à commander la quantité souhaitée. Le prix unitaire indiqué est bien le prix pour chaque référence en quantité 1.
